The Micro Precision Steam Cleaner Solves Tough
Cleaning Challenges

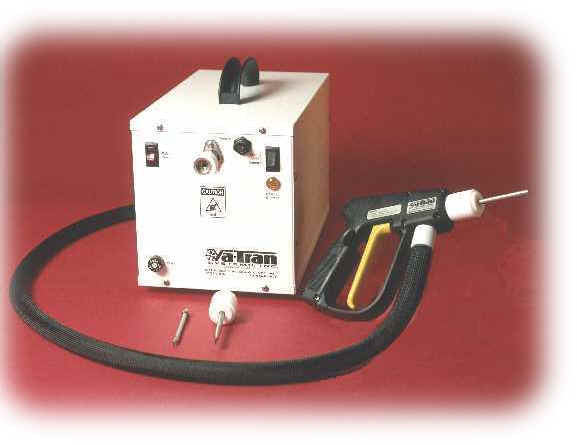

The Micro Precision Steam Cleaner is a small, table top, portable steam cleaner which instantly converts distilled water to high pressure, super-heated steam. The MPS is effective for removing grease, oil, flux, adhesive, fingerprints and many other contaminants

.The Micro-Precision Steam Cleaner makes use of patented design elements that allow steam to be rapidly generated while never coming into contact with any components other than stainless steel and Teflon. There is no copper, aluminum, or steel to corrode and contaminate the substrate being cleaned. Steam is never stored under pressure, so the MPS is safer than other steam cleaners. The MPS uses less water to do more cleaning, which means less waste to dispose of. Surfaces are often warmed enough during cleaning to dry quickly.


Va-Tran manufactures different models of the MPS to supply various durations of steam spray.

Model Number Steam Temperature Approximate Pressure Power 50/60Hz
MPS-1-121 250oF to 180 psig 100-120VAC

14A Max

Delivers about 2-3 minutes of intermittent steam bursts, then must reheat for about 2 minutes or less.  All wetted parts are stainless steel.  Pistol grip trigger operation.  Ideal for intermittent ultra pure high-tech cleaning.
MPS-1-CD 250oF-350oF 90-115 psig 200-240VAC

14A Max

Provides 100% continuous steam.  Temperarature and Pressure can be selected. All wetted parts are stainless steel.  Straight grip nozzle.  Ideal for intermittent ultra pure high-tech cleaning.
MPS-1-302 250oF-350oF 150-200+ psig 200-240VAC

14A Max

Provides 180+ psig steam intermittently .  All wetted parts are stainless steel.  Pistol grip trigger operation.  Ideal for intermittent ultra pure high-tech cleaning of stubborn contaminants.
MPS-1-151B 212oF-350oF 90-115 psig 100-120VAC

14A Max

Equipped with fixed single jet nozzle and a foot switch.  Brass and stainless steel wetted parts.   Ideal for intermittent jewelry cleaning

Dimensions: 8.5" X 13" X 8"

Weight: Approx 20 lbs

Use Distilled or Deionized Water Only!

Va-Tran Systems has extensive experience in the design and fabrication of custom systems to meet special requirements. For more information call:
800-DRY-ICE1 (800-379-4231).
